Name: Brass ball valve 1/2 | Brass Finish ball valve Rn Brand
Brand: Brass Ball valves
Availability: InStock

-44%

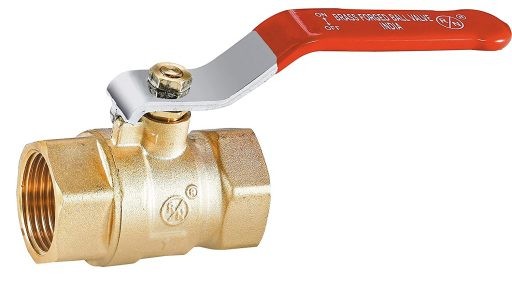

Brass Ball Valve Brass Finish | ARTNO_1710 | RN Forged Brass Ball Valve 1/2

₹140.00 – ₹7,476.00 excl. GST & Transportation

RN FORGED BRASS BALL BRASS FINISH ARTNO_1710

Anti Blow Out Stem with RN Forged Brass Chrome Plated Ball.

Thread Size (MM)

8MM (1/4")
10MM (3/8")
15MM (1/2")
20MM (3/4")
25MM (1")
32 MM (1.25")
40MM (1.5")
50MM (2")
65MM (2.5")
80MM (3")
100MM (4")

Clear

SKU: N/A Category: Brass Ball valves Tags: BALL VALVE, BRASS AND VALVE, rn valve, VALVE

Description

RN FORGED BRASS BALL VALVE 1/2 TO 3 BRASS FINISH

Anti Blow Out Stem with RN Forged Brass Chrome Plated Ball valve 1/2

Leader Forged Brass Ball Valve, Two Piece,
Full Bore Design, Nickel Plated,
High Tensile Brass Stem, Premium quality PTFE Seat Rings,
Corrosion Free Brass/ SS Stem Nut and Aluminum Lever suitable for good working pressure of 200 (psi).
TEST PRESSURE (Hydrostatic)
Shell : 15 Bar (220 psi)
Shell : 10 Bar (150 psi)
Made in India.

Maximum good working,& Maximum Working Temperature 200+ Degree Celsius.

A good Silver cartridge lets you conveniently open or stop water flow from the spray head, and adding the silver finish adds a great elegance product accent to your bathroom.

Package (group of): 1-Piece brass concealed stop cock also you get free Adjustable brass wall. It has a nickel chrome and golden color chrome finish gives highly bright & life long proof.

Mini ball valve and many more products is a pieces turn type ball valve that is used for shut off application in a good work. The handle can be rotated 90 degrees to open or close the valve.

Additional information

Weight	N/A
Test Pressure (Hydrostatic)	40kg/cm²g
Maximum Working Temperature	220° C
Brand Name	R/N
Suitable For	Water, Oil, Air
Thread Size (MM)	8MM (1/4"), 10MM (3/8"), 15MM (1/2"), 20MM (3/4"), 25MM (1"), 32 MM (1.25"), 40MM (1.5"), 50MM (2"), 65MM (2.5"), 80MM (3"), 100MM (4")
Body	1 PC Forged Brass (Chrome Plated) IS 6912 Gr.FLB
Bonnet	1 PC Forged Brass IS 6912 Gr.FLB
Ball	1 PC Forged Brass (Hard Chrome Plated) IS 6912 Gr. FLB
Body Seat Ring	2 PC BS EN 12086-1
Thrust Washer	1 PC Forged Brass IS 12086Gr. FLB
Gland Packing	PTFE BS EN 12086-1
Stem	1 PC Forged Brass IS 6912 Gr. FLB
Gland	PTFE BS EN 6912 Gr.FLB
Lever (Art no, R/N 1710)	Miled Steel (Chrome Plated) ASTM A 194 Gr. 2H 1PC
Lever (Art no. R/N 171DP )	Mild Steel (Power Coated) ASTM A 194Gr.2H 1 PC
Nut	Brass IS 6912 Gr. 2H
Product Material	BRASS
